How To Install Whole House Surge Protector

One of the best ways to protect your home's electrical system and appliances from unexpected power surges is with a whole house surge protector. Power surges can cripple costly electronics in seconds, whether they occur as a result of lightning, power outages or a switch to a different electrical grid. By following this guide, you will learn how to safely and properly install a whole house surge protector and when it's time to contact a licensed electrician.

What is a Whole House Surge Protector and Why You Need One

Whole house surge protector is a surge protector that is attached to your main electrical panel to safely channel excess voltage to the ground.

This system is different from plug-in surge strips, which only safeguard individual devices; instead, it offers protection for your entire home's electrical network.

Surge protection is more of a necessity than an option in homes that experience weather-related power fluctuations in many provinces and lightning storms.

It can keep refrigerators, TVs, computers, HVAC systems and even smart home gadgets safe from expensive harm. It is also very beneficial to your appliances by powering them with a steady flow of electricity.

Safety First and Electrical Panel Preparation

First and foremost, safety is the number one consideration before installing a whole house surge protector. An electrical panel is a dangerous place to work, if not handled properly, because of the risk of injury or death.

The first step is to have the proper tools, which includes insulated screwdrivers, a voltage checker, and safety gloves. Keep work area dry and well lit. Also you need to check out the Canadian Electrical Code (CEC) which is the standard for safe electrical installations.

If you're not comfortable with working with live electrical systems, it's highly recommended that you hire a licensed electrician. Professionals are often preferred to make sure the work is done correctly and safely.

Choosing the Right Surge Protector for Your Home

There are many different types of surge protectors and it is important to select the proper one for protection. Check that the device fits the type of electrical panel (usually 120/240V for homes in Canada).

Know the joule rating, or the amount of energy the device can absorb without failure. The higher the rating, the more protection it offers, in general. It's also best to research the answer time and if the equipment is CSA-cleared or UL-listed for safety requirements in Canada.

Some surge protectors are fitted indoors in the panel and others are fitted outdoors close to the meter box. Select one that will work for your home's setup and electrical capacity.

Turning Off Power and Accessing the Main Panel

The main power supply must be switched off and disconnected before installation is made. Find the main breaker and switch it off to disconnect power from the main panel. But remember, there is a possibility of service lines still being live when connected to the panel, so extreme caution must be taken.

Test with a voltage tester to ensure that no current is flowing in circuits before touching any wires. Once confirmed, carefully remove the panel cover using insulated tools.

Many DIY projects go awry at this point. Electrical panels are tightly packed with wires, and if they come in contact with the live parts, it can be dangerous. Be patient and do not rush through this step.

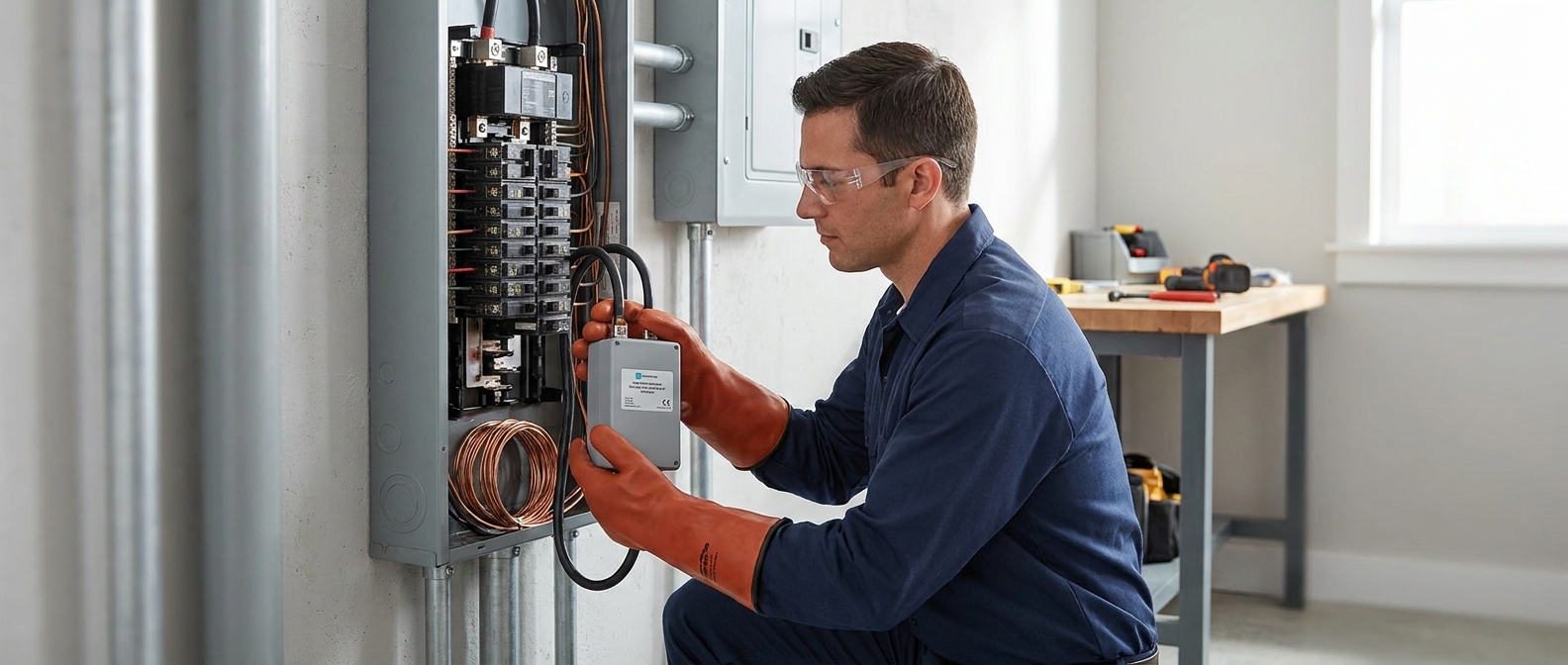

Installing the Surge Protector at the Electrical Panel

The first step in the installation process is to find an appropriate knockout hole in the electrical panel. Most surge protectors have a threaded connector to plug directly into the panel.

Plug device's cables into the panel carefully. The surge protector will generally have two hot wires (one to each circuit breaker) and a ground wire.

Attach the device to the panel housing as per manufacturer's guidelines. Stability and long-term performance is critical with proper mounting. For house, make sure that it is installed in accordance with the electrical code and municipal regulations.

Connecting the Ground and Neutral Wires Properly

One of the most important components of a whole house surge protector installation is the grounding. The ground wire must be firmly attached to the grounding bar of the panel in order to safely ground any excess electrical current.

Depending on your home's configuration, the neutral and ground bars can be connected in certain configurations. Always be sure to follow the manufacturer's wiring diagram closely: any error in the wiring can make the surge protector useless or even hazardous.

One of the most common installation errors is a bad grounding connection. Depending on the age of your electrical system, it may be necessary to have an electrician inspect the grounding before proceeding.

Testing the Installation and Restoring Power

After making all connections, carefully replace the panel cover. Ensure there are no loose or exposed wires. Once this is done, you can restore power by turning the main breaker back on.

Check the thermometer or indicator lights on the surge protector (if they are included). The majority of modern units will have LEDs to indicate that the unit is operating properly.

If the light does not come on, or if there are any faults, turn off power and re-check wiring immediately.

Also, to make sure that all household outlets function correctly post installation, it's a good idea to test a few.

Maintenance Tips and When to Call a Licensed Electrician

Although whole house surge protectors require very little maintenance, it’s important to inspect them periodically. Monitor the indicator lights periodically to make sure the system is operating and protecting.

Surge protectors are not permanent. They can take multiple big ones and have to be replaced. They are replaced every 5-10 years based on usage and environmental conditions.

If there is a problem, such as breaker tripping, light flickering, or electrical damage is being done, call a licensed electrician right away. For older homes or complicated electrical panels, professional installation can be the most secure and code-compliant choice.

For older homes or complex electrical panels, professional installation can be the safest and most code-compliant option.

A properly installed whole house surge protector is a good investment and will safeguard your home and peace of mind.
